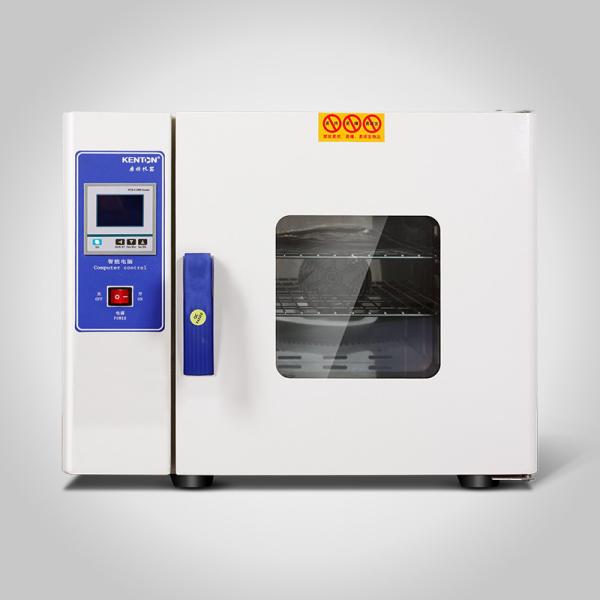

OEM Laboratory Drying Oven / DHG Desktop Dry Oven With Stailess Steel Inner
DHG series:
Suitable for a higher temperature uniformity requirements user. The
basis of laboratory research units supporting equipment, use
recommended for intermediate and senior laboratory.
Product introduction:
●Widely used in drying process, sterilization, thermostatic
storage, heat treatment, other fields, the basis equipment of the
laboratory and research units, but not for volatile, flammable,
explosive and other items, in order to avoid to cause an explosion.
Feature:
●Precision LCD microcomputer intelligent PID control system, with
temperature control, timing and over-temperature alarm, with RS485
computer interface.
●With standard international brands cooling fan maintenance - free,
durability. Perfect combination of duct design to ensure
temperature uniformity for the working chamber.
●Mirror stainless steel inner, anti-acid, and anti-corrosion
characteristics.
Technical Parameters:
Model | Temp (℃) | Accuracy | Fluctuation (%) | Voltage | Power (KW) | Inner size (mm) (H*W*D) | Overall dimension | Packing size | Net weight (KG) | Shiping weight |
DHG-9040 | RT+5 | ±0.1 | ±1 | 220 | 1 | 320*350*350 | 530*640*550 | 650*720*630 | 36 | 39 |
DHG-9070 | 1.2 | 420*450*350 | 630*740*550 | 750*820*630 | 47 | 50 | ||||
DHG-9130 | 1.6 | 520*550*450 | 750*890*630 | 870*970*710 | 62 | 66 | ||||
DHG-9230 | 2.5 | 750*600*500 | 980*965*770 | 1100*1045*850 | 96 | 105 | ||||
DHG-9040C | ±0.5 | ±1 | 1 | 320*350*350 | 530*640*550 | 650*720*630 | 36 | 39 | ||
DHG-9070C | 1.2 | 420*450*350 | 630*740*550 | 750*820*630 | 47 | 50 | ||||
DHG-9130C | 1.6 | 520*550*450 | 750*890*630 | 870*970*710 | 62 | 66 | ||||
DHG-9230C | 2.5 | 750*600*500 | 980*965*770 | 1100*1045*850 | 96 | 105 |
GX series
Technical Parameters:
product model | ALLIGENT-GX Thermostatic Drying Oven | ||||
GX-40 | GX-70 | GX-130 | |||
Convection Mode | Forced Convection | ||||
Control System | Microprocessor PID | ||||
Temp. Range (℃) | RT+5℃~250℃ | ||||
Temp. Accuracy(℃) | 0.1 | ||||
Temp. Fluctuation(℃) | ±0.5(in the of range 50~240℃) | ||||
Temp. Uniformity | 2%(in the of range 50~240℃) | ||||
Timer Range | 0~99h,or 0~9999min,can be choose | ||||
Working environment | Ambient temperature:10~30℃, Humidity<70% | ||||
Insulation materials | Imported environmental protection type material | ||||
External Dimensions(mm) (H×W×T) | 570×580×593 | 670×680×593 | 770×780×693 | ||
Internal Dimensions(mm) (H×W×T) | 350×350×350 | 450×450×350 | 550×550×450 | ||
Interior Volume(L) | 40 | 70 | 130 | ||
Interior steel materials | SUS304 stainless steel inner | ||||
The number of standard tray | 2 | ||||
Power(W) | 770 | 970 | 1270 | ||
Supply voltage | 220V/50Hz | ||||
Net weight(KG) | 40 | 48 | 65 | ||
Shipping weight(KG) | 43 | 51 | 69 | ||
Packing size(mm) (H×W×T) | 690×660×680 | 790×760×680 | 890×860×780 |
![]() |
