Kenton Lab Dryer Oven With 300°C Force Air Circulating PCB Drying Oven
101- series:
Product introduction:
●Provide for the industrial factory, labs, research and other
departments for Drying, baking, melting and sterilizer use.
Features:
●Three kinds of controller types Pointer controller, LED
microcomputer controller and Microcomputer intelligent type.

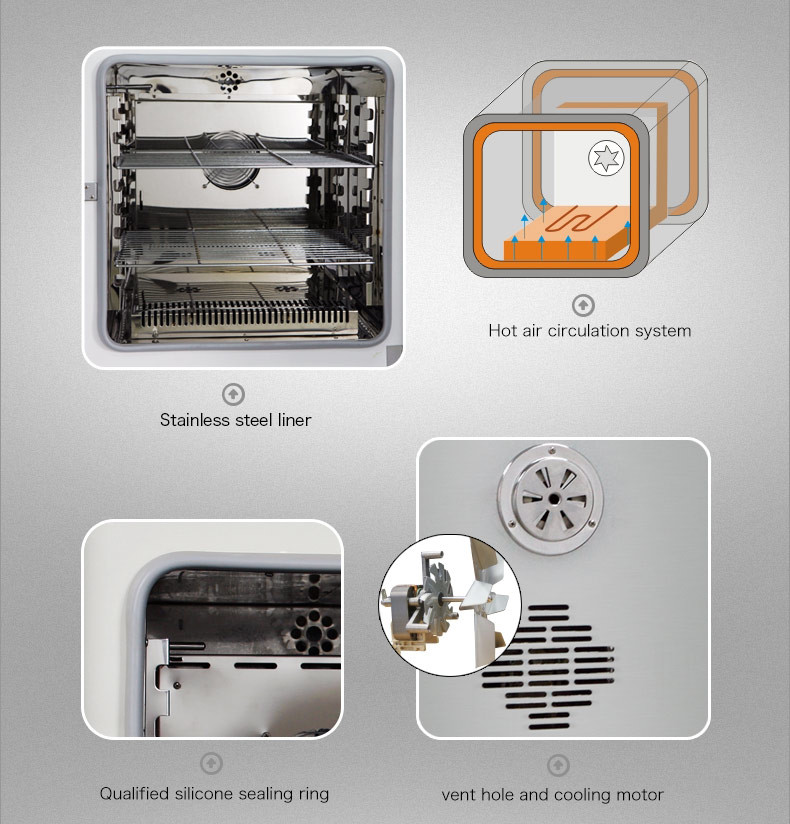

●The shell is made of high quality cold-rolled steel with metallic
paint spray. Nice overall color design suitable for all research
labs and workshop production.
●With double-layer glass observation window, easy to watch the
materials in the chamber.
●Two models material inner chamber mirror stainless steel and
ordinary cold-rolled stainless steel.
●Air circulation system consists of low noise fans and air cycle
duct to make the temperature more uniform. The reasonable air
circulation ensures the temperature uniform in the inner chamber
and fast warm-up time.
●High temperature resistant silicone for sealing the door,
high-temperature heat pipes for the heating element to ensure
safety and longer life.
●Fan forced convection for 101 series oven air circulation.
Technical Parameters:
Model | Voltage | Temp (℃) | Accu racy | Fluct uation (%) | Power (KW) | Inner size (mm) (H*W*D) | Overall dimension | Packing size (mm) | Net weight (KG) | Shiping weight |
101-0(AS) | 110-220 | RT+5 ~300 | ±1 | ±1 | 0.8~1.6 | 350*350*350 | 590*660*520 | 710*740*600 | 34.8 | 37.2 |
101-1(AS) | 110-220 | ±1 | 0.8~1.6 | 450*450*350 | 690*760*520 | 810*840*600 | 41.5 | 45 | ||
101-2(AS) | 110-220 | ±1 | 1.6~2.4 | 550*550*450 | 790*870*640 | 910*950*720 | 60 | 64.5 | ||
101-3(AS) | 110-220 | ±1 | 2~3 | 750*600*500 | 1050*980*700 | 1270*1060*780 | 80 | 84.5 | ||
101-4(AS) | 220-380 | ±2 | 3~4.8 | 1000*800*800 | 1300*1210*1000 | 1420*1290*1080 | 162 | 168 | ||
101-5(AS) | 220-380 | ±2 | 4~6 | 1000*1000*1000 | 1300*1420*1200 | 1420*1500*1280 | 189 | 197 |
The modes with “A” is LED microcomputer controller.
The modes with “S” is stainless steel inner chamber.
●Widely used in drying process, sterilization, thermostatic
storage, heat treatment, other fields, the basis equipment of the
laboratory and research units, but not for volatile, flammable,
explosive and other items, in order to avoid to cause an explosion.
Feature:
●Precision LCD microcomputer intelligent PID control system, with
temperature control, timing and over-temperature alarm, with RS485
computer interface.
●With standard international brands cooling fan maintenance - free,
durability. Perfect combination of duct design to ensure
temperature uniformity for the working chamber.
●Mirror stainless steel inner, anti-acid, and anti-corrosion
characteristics.
Technical Parameters:
Model | Temp (℃) | Accuracy (℃) | Fluctuation (%) | Voltage (V) | Power (KW) | Inner size (mm) (H*W*D) | Overall dimension (mm) (H*W*D) | Packing size (mm) (H*W*D) | Net weight (KG) | Shiping weight (KG) |
DHG-9040 | RT+5 | ±0.1 | ±1 | 110- 220 | 1 | 320*350*350 | 530*640*550 | 650*720*630 | 36 | 39 |
DHG-9070 | 1.2 | 420*450*350 | 630*740*550 | 750*820*630 | 47 | 50 | ||||
DHG-9130 | 1.6 | 520*550*450 | 750*890*630 | 870*970*710 | 62 | 66 | ||||
DHG-9230 | 2.5 | 750*600*500 | 980*965*770 | 1100*1045*850 | 96 | 105 | ||||
DHG-9040C | ±0.5 | ±1 | 1 | 320*350*350 | 530*640*550 | 650*720*630 | 36 | 39 | ||
DHG-9070C | 1.2 | 420*450*350 | 630*740*550 | 750*820*630 | 47 | 50 | ||||
DHG-9130C | 1.6 | 520*550*450 | 750*890*630 | 870*970*710 | 62 | 66 | ||||
DHG-9230C | 2.5 | 750*600*500 | 980*965*770 | 1100*1045*850 | 96 | 105 |
![]() |
