KENTON Anaerobic Incubator Anaerobic Workstation For Lab

Anaerobic incubator(custom-made is available):
anaerobic incubator is composed of incubator, vacuum sampling chamber, air circuit and circuit control system. The whole machine has the advantages of novel shape, compact structure, good anaerobic environment, good sealing performance, high temperature control accuracy, good stability, convenient use, gas saving, economy, safe and reliable operation, etc. The product is a special device for bacterial culture and operation in anaerobic environment. It can cultivate the most difficult anaerobic organisms and avoid the danger of death caused by exposure to oxygen when anaerobic organisms used to operate in the atmosphere.

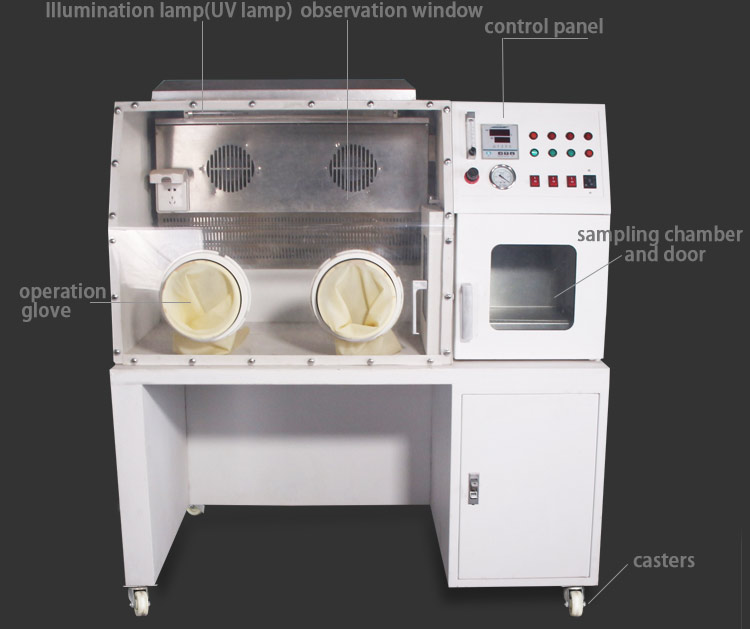

Structural characteristics:
the equipment adopts the intelligent PID temperature controller which can accurately and intuitively reflect the actual temperature in the chamber. With safe and reliable temperature limiting protection device.

UV sterization lamp is installed in the equipment, the filtered gas flowing into the chamber can effectively avoid bacterial contamination.

Gas circuit device, which can adjust the flow , and can inject all kinds of required gases.

Operating chamber are made of stainless steel. The front window are made of thick transparent and impact-resistant special glasses. The gloves are reliable, comfortable, flexible and easy to operate.

requirement for door-to-door debugging (user-provided):
2pcs gas cylinders (40L carbon cylinder), one of bottle of mixed gas, mixture gas ratio: CO2 5%; H2 10%; N (high purity nitrogen) 85%. Another bottle of gas is 99.99% high purity nitrogen, then matched with cylinder pressure relief valves 2pcs(output pressure is about 0.1 MPA).

Chemical reagent required: HA deoxidizer 500g and desiccant 500g (Note: We can buy HA deoxidizer and desiccant for you).

Product parameters:

Model	YQX-Ⅱ
Sampling chamber access	16×24.5cm
Time of anaerobic formation in asmpling chamber	<5 minutes
Anaerobic time in operation room	<1hour/O2 content≤1%
Maintenance time of anaerobic environment	Operating chamber Stops Supplying Trace Mixed Gases, >12hours
Temperature control range of incubation chamber	RT3~60℃
Precision	±0.1℃
Temp.fluctuation	±0.3℃
Temp.uniformity	±1℃
Voltage/Power	220V/50Hz,1400W
N.W/G.W	240/320kg
Sampling chamber access	210×210mm
Incubation chamber dimension	230×230×230mm
Operation chamber dimension	550×820×660mm
Exterior dimension	1410×740×1210mm
Packing dimension	1590×880×1340mm
The performance parameters tested under no-load conditions are as follows:ambient temperature 20℃, ambient humindity 50% RH.
Can not be used for long-term cold storage.

KENTON Apparatus Limited is one professional manufacturer, established in 1999, and specializing in the product of biological constant temperature equipment and laboratory equipment. After 20 years’ development, our company has passed ISO9001 international quality management system certification, ISO13485 medical industry certification and EU CE safety certification.


We have our own brand of KENTON.Our product includes drying oven, incubator, high temperature chamber,muffle furnace,water bath, industrial air oven, clean beach,biochemical incubator, vacuum oven, constant temperature and humidity chamber, biological safety cabinet, artificial climate chamber, light incubator and other series Product. The annual output is 20,000 sets, and is growing at a rate of 20% per year. It has realized the largest and most influential equipment manufacturer in South China.

With the changes in global market demand, the company has carried out industrial upgrading in recent years, and newly established Kenton Technology Ltd. to focus on the development of supporting equipment in the fields of life sciences and biological research. Through independent research and development and technological improvement, we increased the new Product series ,include: Anaerobic oven,(Ultra)low temperature refrigerator, blood oscillator, non-pipeline clean gas fume hood, sterile isolation cabinet, drug testing safety cabinet, etc. Our products are widely used in various scientific research departments, medical preservation, genetic vaccine and other industries.

At the same time, through continuous investment, research and development and improvement in talents, equipment and technology, we have gained wide recognition and support, and sold to Europe, America, Southeast Asia, Australia, the Middle East and other global markets. To provide quality Product and services for professional scientific research institutions and laboratories,and industrial and mining enterprises at home and abroad.

Regarding overseas after-sales service, we can provide videos of installation, commissioning, function setting, etc. and pictures of how to replace accessories. For cooperative dealers, we can provide spare parts storage to facilitate timely replacement, and dealers with local maintenance capabilities will give maintenance fee refunds every year.
